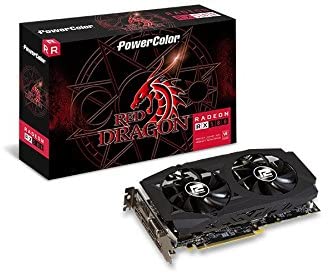

It features 2304 shading units, 144 texture mapping units, and 32 ROPs. AMD has paired 8 GB GDDR5 memory with the Radeon RX 580, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1257 MHz, which can be boosted up to 1340 MHz, memory is running at 2000 MHz (8 Gbps effective).
Rx 470

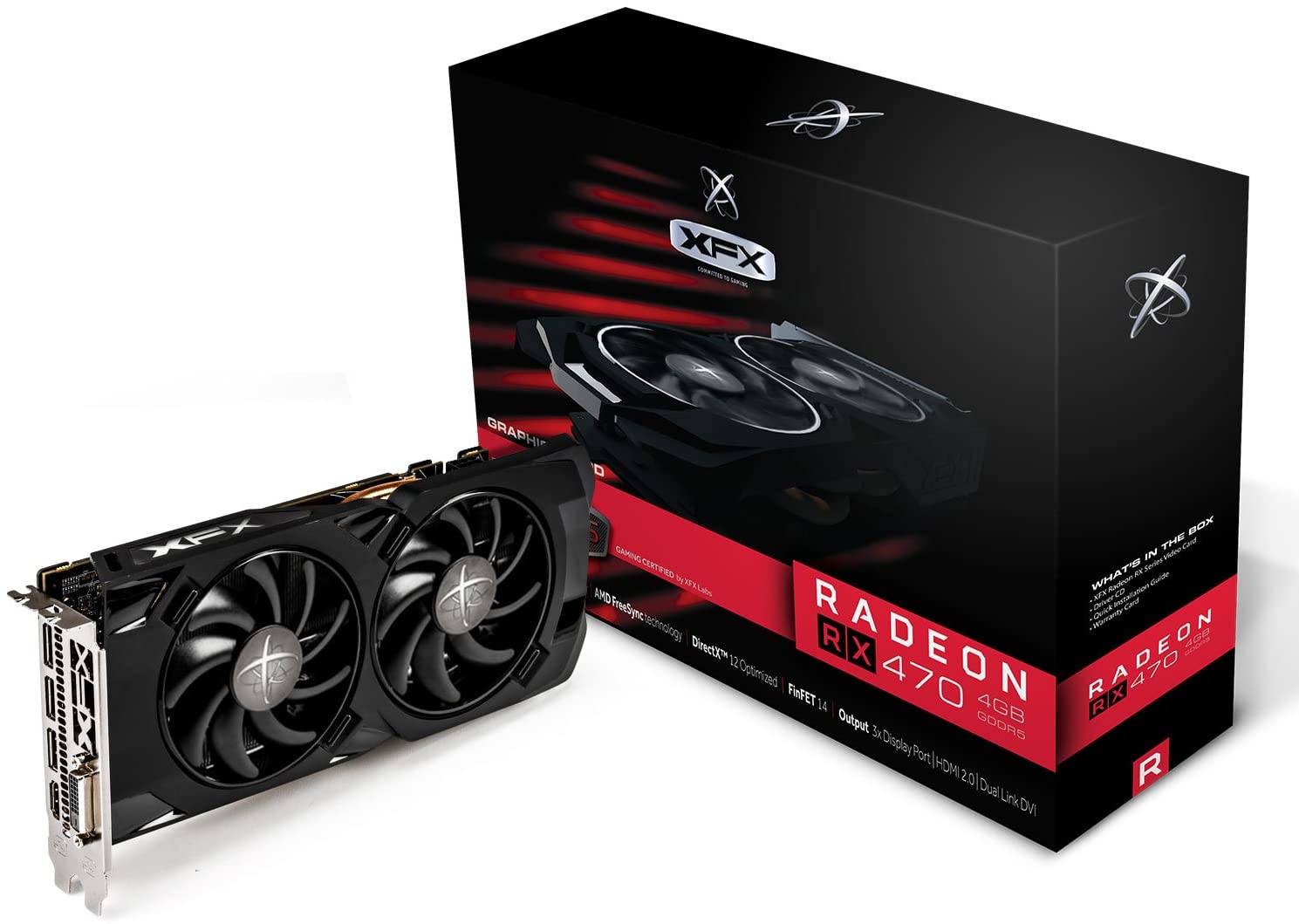

The AMD Radeon RX 470 is a mainstream graphics card for desktop PCs. It was announced in August 2016 and is based on the Polaris 10 chip, just like its bigger sibling Radeon RX 480. The GPU does, however, only use 2048 shader units (32 CUs, 128 TMUs) from 2304 (36 CUs, 144 TMUs). The clocks at 926 – 1206 MHz for the core as well as 1650 MHz for 4 or 8 GB GDDR5-VRAM (256-bit interface) are a bit lower as well.
As a result of the reduced hardware equipment, the RX 470 is about 10 percent slower than the RX 480 and just manages the performance level of the Nvidia GeForce GTX 970. Modern games from 2016 can usually be played in the Full-HD resolution and the highest settings.
The TDP of the Radeon RX 470 is specified with 120 Watts by AMD, so a single 6-pin power connector is sufficient.
Nvdia GTX 1050ti

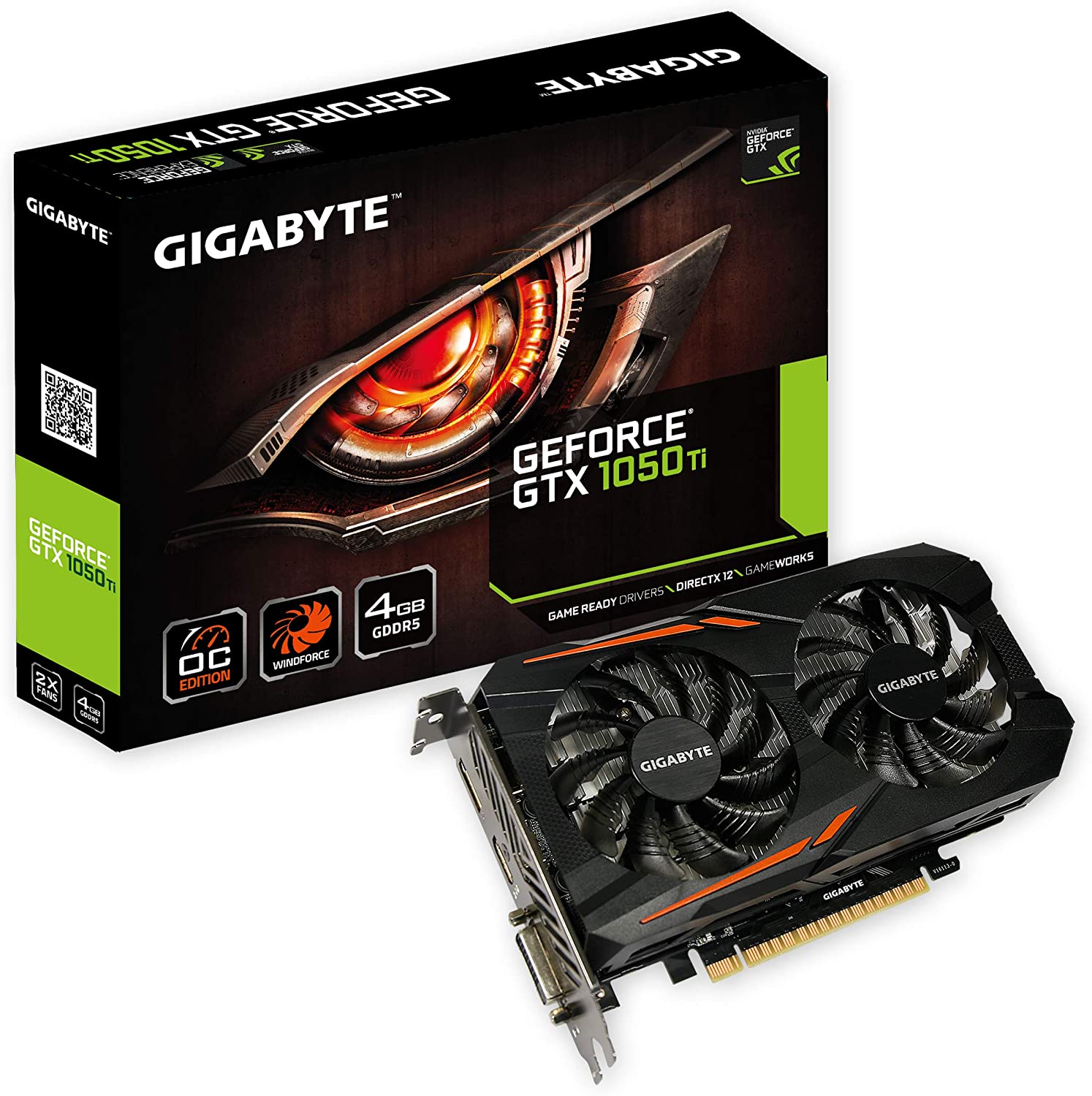

It features 768 shading units, 48 texture mapping units, and 32 ROPs. NVIDIA has paired 4 GB GDDR5 memory with the GeForce GTX 1050 Ti, which are connected using a 128-bit memory interface.
